Compact

TAFE 6022

The TAFE Tractors' Compact line excels in agility and portability. These adaptable tractors can handle varied tasks with different implements be it heavy haulage to agriculture. Their cost-effectiveness and low upkeep make them attractive for those mindful of budget. With reliable engines and diverse implement options, they guarantee top-notch performance, enhancing efficiency with ease. Their proficiency in both farming and industrial tasks, marked by adjustable speeds and quick handling, highlights their role in elevating operational effectiveness

Specifications

TAFE 6022

24 HP

Engine Power

9 F + 3 R

Transmission

4WD

Drive

2 Speed

PTO

3 cyl. 1318 cc Stage V

Engine Type

23 L

Fuel Capacity

Power

Steering

739 KG

Lift Capacity

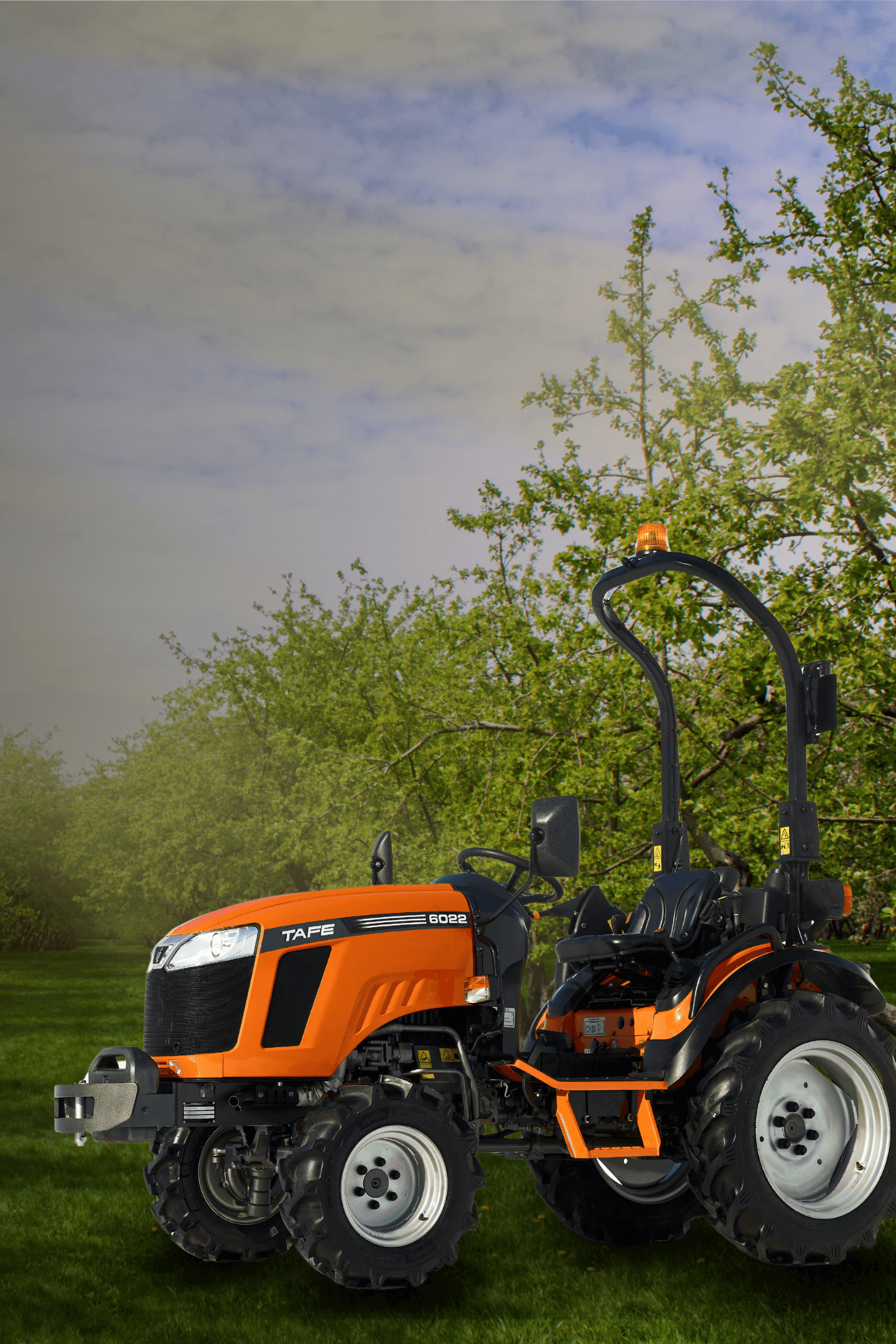

Presenting the powerful 24 hp TAFE 6022, a machine made for precision and efficiency. It is designed for maximum performance, with features including an automated draft-detecting hydraulic system for adaptability, a 4WD drive for stability, and a 9F+3R transmission for smooth operations. The operation of power steering and oil-immersed brakes enhances safety and control. With a strong lifting capability of 739 KG, it's the ideal option for adaptable and successful farming.

Technical

Compare Models

Select up to 3 models to compare specifications

TAFE 6022

Specifications
TAFE 6022

Engine Power

24 HP

Drive

4WD

Clutch

Single

Transmission

9 F + 3 R

PTO

2 Speed

Engine Type

3 cyl. 1318 cc Stage V

Lift Capacity

739 KG

Steering

Power

Brakes

Oil immersed brakes

Fuel Capacity

23 L
Awesome

Features

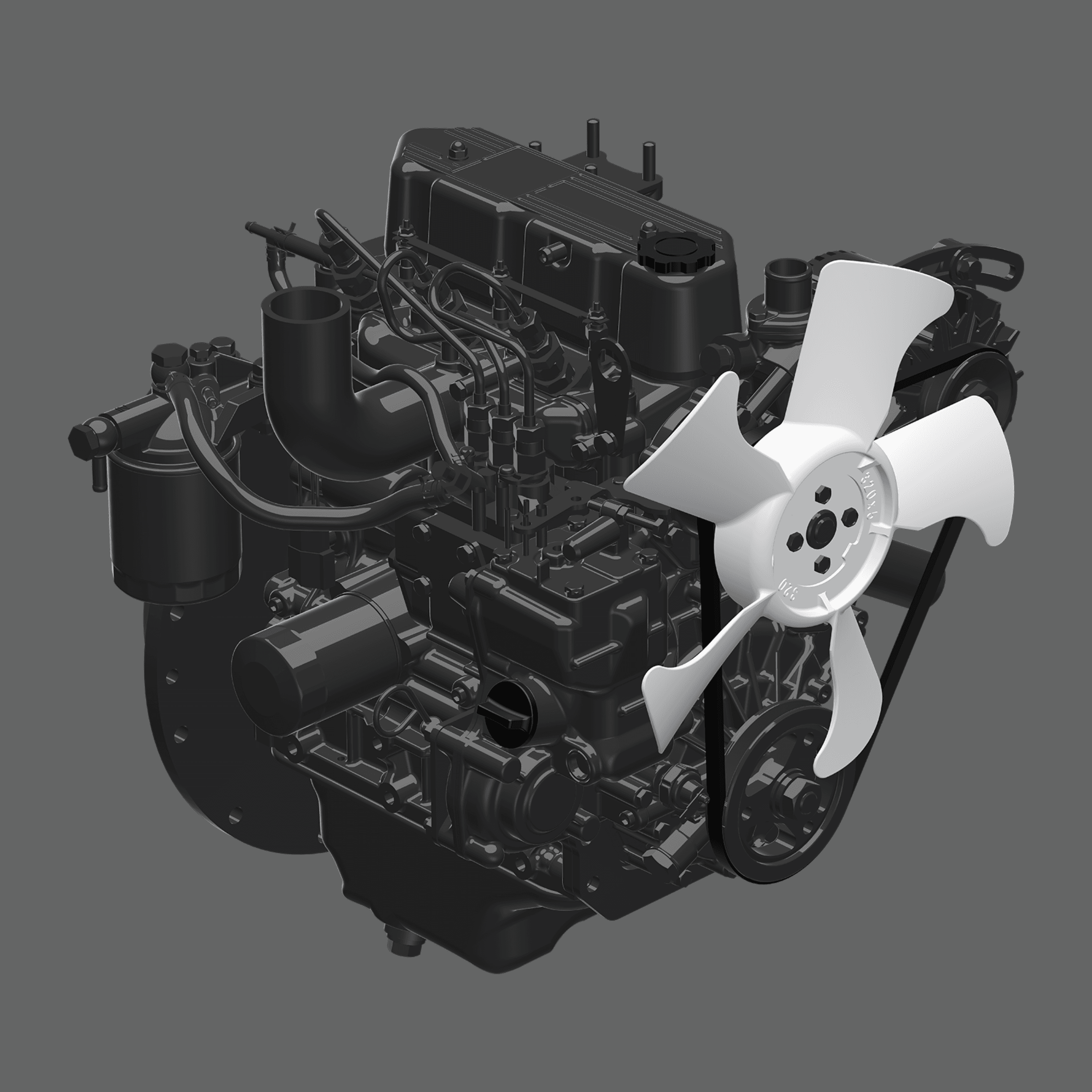

EU Stage V Compliant Engine

The 3-cylinder internal combustion engine of the TAFE 6022 conforms to EU STAGE V compliance, supporting the global initiative to lessen the environmental effect of internal combustion engines.

Awesome

Features

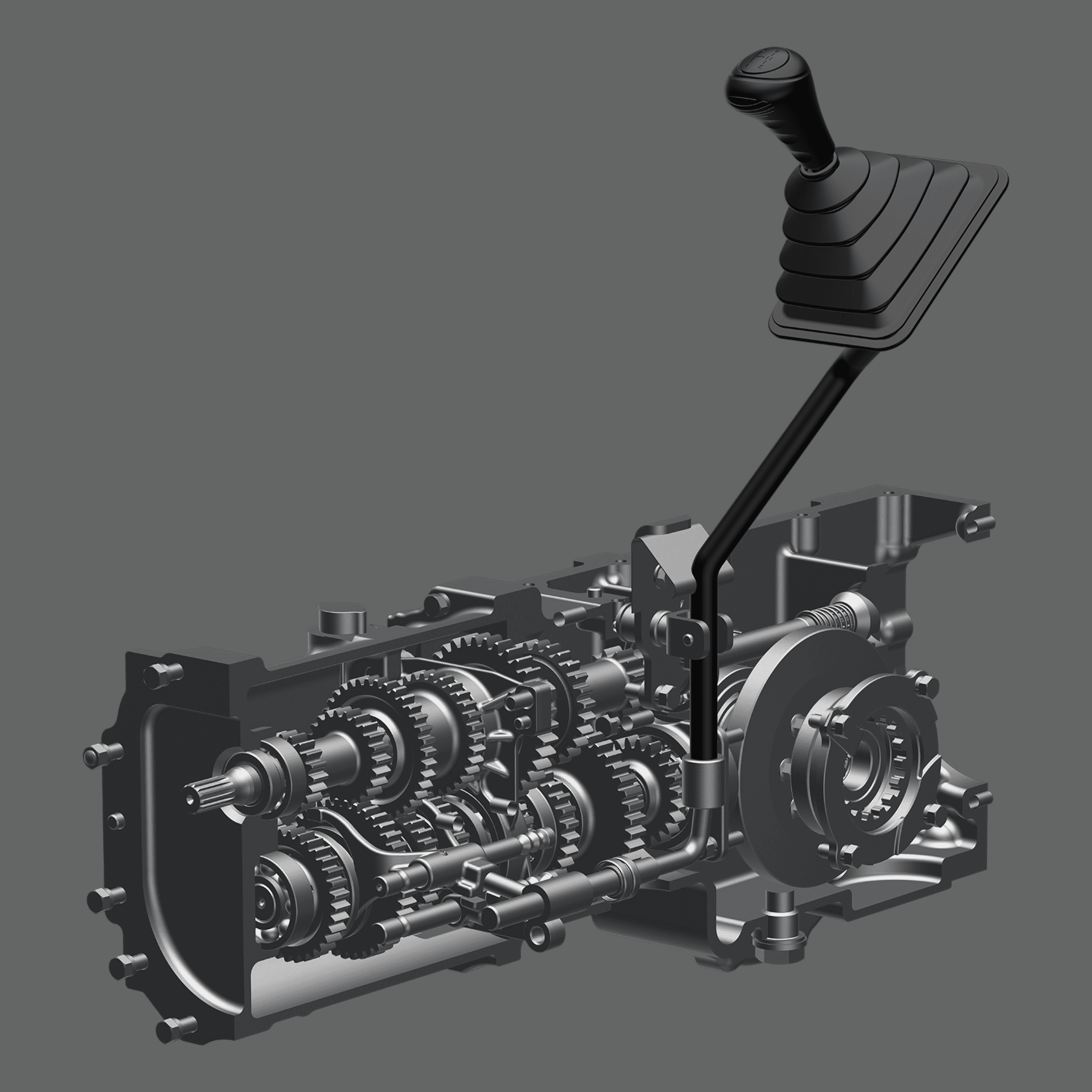

9F + 3R Gearbox System

The transmission setup for the TAFE 6022 compact tractor offers optimal speed for a wide range of operations. This gear configuration provides a good balance between forward speeds for various tasks and the ability to maneuver in reverse.

Awesome

Features

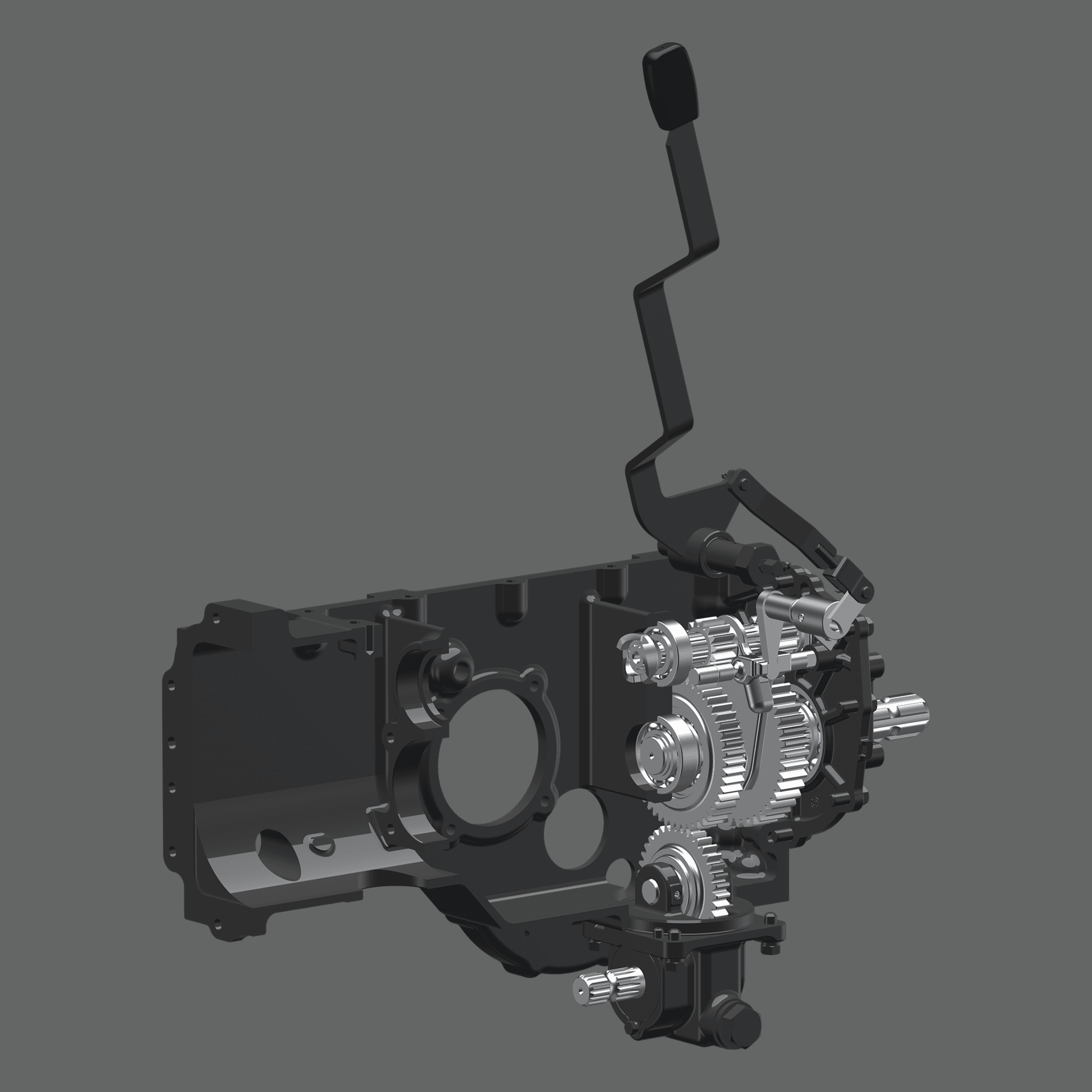

Dual Speed PTO

The TAFE 6022 from the compact series offers dual-speed Power Take-O (PTO) mechanism, capable of powering both high-speed and low-speed implements. This adaptability makes this model suitable for a diverse range of applications.

Awesome

Features

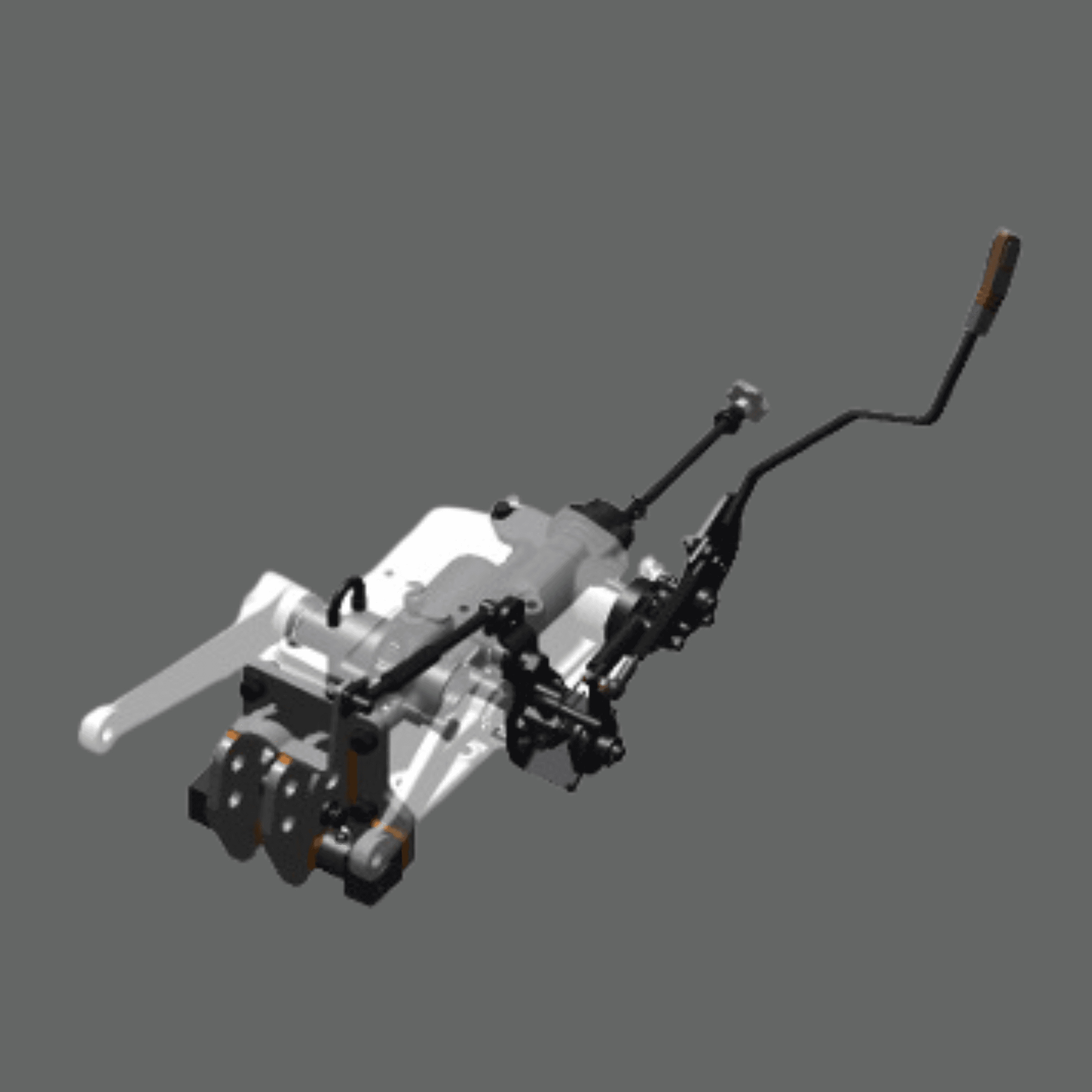

Lift Capacity

With a robust lift capacity of 739 KG, the TAFE 6022 is optimized for high-performance integration with a myriad of implements. This design, backed by advanced mechanical engineering, ensures precision-driven compatibility across diverse applications.
